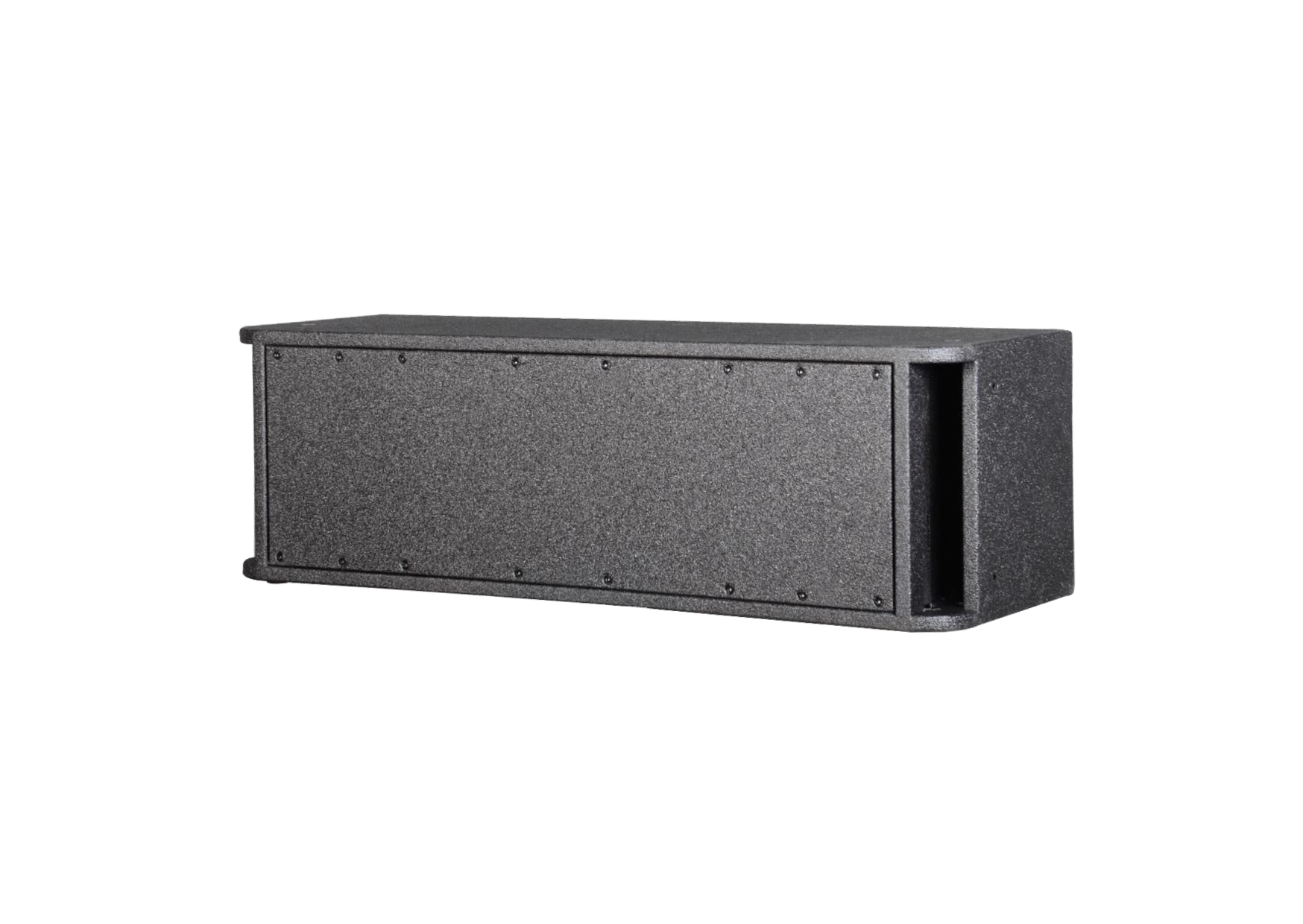

FlatPanel Audio LS208 Compact Dual 8-inch Subwoofer
Photos
Key Features
- Designed to complement FlatPanel Audio DML500 and DML500A loudspeakers.
- High-output subwoofer with bass reflex, semi horn-loaded port design.
- Compact, low-profile form factor ideal for space-constrained installations.
- Same width as DML500 series for seamless integration.
- Slim design suitable for discreet placement (under stages, against walls).
- Delivers extended low-frequency response for full-range audio systems.
- Dual 8-inch drivers with heavy-duty 2-inch voice coils.
- Flexible installation with rubber feet, rigging points, and wall-mount support.
Technical Specifications
System
Frequency range (-10dB)45Hz – 300Hz
Frequency response (-6dB)48Hz – 275Hz
Sensitivity95 dB
Max SPL (peak)129 dB
Impedance4 ohms
InputDual Speakon NL4
Power (Cont/Prog/Peak)700W / 1400W / 2800W
Driver
LF Transducers2 × 8-inch
Voice Coil51 mm
WindingCCA (Copper-Clad Aluminum)
MagnetFerrite
Design
Enclosure6th order bandpass
Chamber DesignAsymmetrical dual-chamber
MountingWall mount + surface points
Rigging12 × M8 points
Physical
Dimensions800 × 250 × 270 mm
(inches)31.5 × 9.8 × 10.6
Weight19 kg (41.8 lbs)
Shipping Size865 × 310 × 330 mm
Shipping Weight20.8 kg (45.8 lbs)
